[REFURBISHED] Dynavin N7-MST2010 PRO Radio Navigation System for Ford Mustang 2010-2014
For FORD MUSTANG 2010-2014 (S197 II)
Compatible with all audio systems: base model, Shaker 500, Shaker 1000
- Plug and Play!
- Premium 9"/16:9 LCD capacitive touchscreen display (1024 x 600 resolution)
- Compatible with all Mustang 2010-2014 audio systems. Includes wiring for all configurations.
- Compatible with all AC systems: standard, dual zone climate control (adjusted through the touchscreen via HVAC menu).

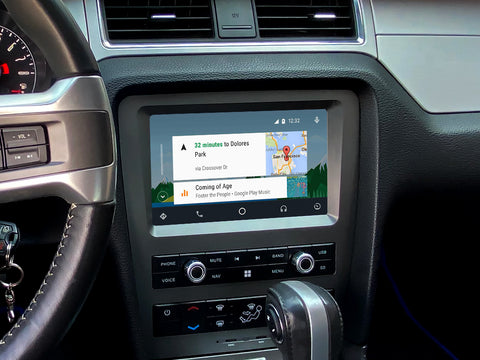

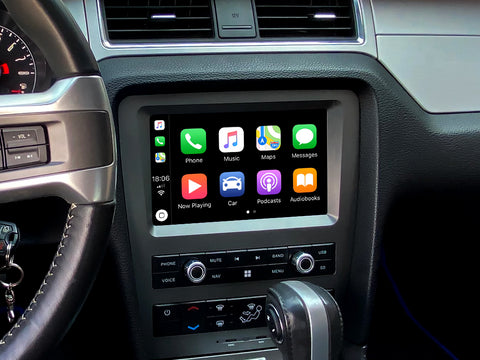

- Apple CarPlay and Android Auto compatible with included iLink Pro USB dongle (wired only)
- Replaces Sync (if-equipped) with Apple's Siri or Google Assistant (depending on your smartphone). Compatible with or without Sync.
- No factory USB? No problem! We recommend the Flush Mount USB Extension (6ft) for easy access otherwise there are two 3ft USB extensions included to route to the glove compartment.
- Dynaperformance's Carbon Fiber Trim Kit made for this radio available now! (Click here to purchase from DynaPerformance).
- CANBUS solution integration (for functionality of steering wheel controls)
- Reverse/backup and/or front camera ready; compatible with most universal backup cameras (see backup cameras sold separately). Compatible with factory backup camera. Click here for details.
- SiriusXM Satellite Radio compatible with SXV300 Tuner (plug-and-play) sold separately. Tip: Use the "Maestro HRN-ANT-SAT1 FAKRA to Aftermarket SMB Satellite Radio Antenna Adapter" with the SXV300 tuner to use your car's factory satellite radio antenna (if equipped). Does not integrate with the car's factory satellite tuner only the factory satellite antenna with the Maestro adapter.
- Bluetooth for audio streaming and hands-free phone calls via any smartphone (Android, Apple, etc.). External microphone included.
- FM RDS TMC tuner with DSP noise masking and 30 preset stations
- Integrated Sound DSP processor with EQ, time correction and 4V pre-out
- AV input/output for aftermarket subs/amps, etc.
- Multimedia player by USB connectivity and microSD card reader
- DynOS operating system platform developed by Dynavin
- Includes lower left and right button covers: 2 black only and 2 heated seat buttons for use if equipped.
- Includes GPS navigation software for North America
- Periodic firmware updates available on our website
- 90-day warranty through Dynavin North America - Fresno, CA
Apple CarPlay and Android Auto Compatible!
Steering Wheel Control Integration
The Dynavin system communicates perfectly with the multifunction steering wheel of your vehicle. With the upgrade to Dynavin you can control volume, telephone, track search (forward / backward) and other functions as usual. If a smartphone is connected to the system, you can even activate your voice control such as "Siri" or "Google Assistant" via the steering wheel.

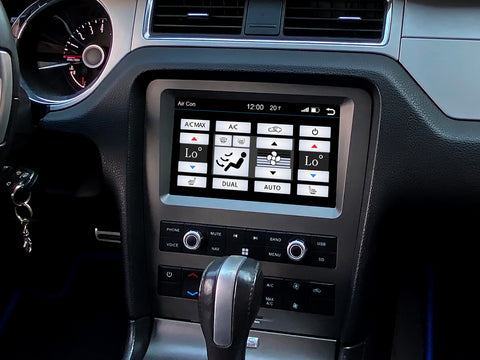

Climate Display HVAC Controls
The Dynavin Pro gives you visual feedback on the driver and passenger temperature, the status of the air conditioning, the status of the seat heating, the selected air vents and more. In vehicles that support this function, you can also use the climate menu to set the interior temperature and the fan direction. There are also physical buttons on the lower panel. (Includes heated seat buttons and blank buttons to support either option.)
If your Mustang is equipped with the original rear view camera, this will also be supported by the Dynavin Pro system. You can see the dynamic guidance lines in the rear view camera mode. You can also install any aftermarket camera.
Compatible with Shaker Sound System (and all audio systems)
The Dynavin Style Systems are compatible with the original Mustang Shaker Sound System. Parts are included in order to integrate with all possible audio systems.
DynaCarbon™️ AFTERMARKET Dynavin Mustang 2010-2014 Multimedia Radio Trim Kit
SiriusXM Satellite Radio Ready
The integrated Bluetooth module enables the wireless connection of a cell phone for hands-free communication. A very intuitive user interface makes it extremely easy to use and you can use the on-screen keyboard to search for contacts. Bluetooth also enables audio streaming from the phone.
Customize the Start Screen (Boot Logo)
With our own DynOS operating system, you have the option of changing the picture on the start screen and the logos of the stored radio stations.

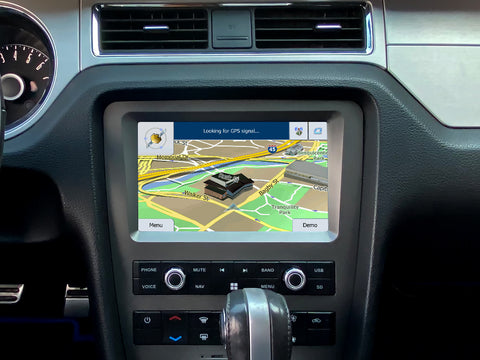

iGo Primo GPS Navigation- included (North America maps)
Dynavin N7 features a built-in navigation system with simple destination input, turn-by-turn voice prompts, and selectable route guidance - everything you need to reach your destination quickly and efficiently. Pre-loaded with rich points of interest, its database includes national parks, restaurants, petrol stations, and much more. Furthermore, iGO Primo offers 30 days FREE updating on the maps after the first use. Visit www.naviextras.com to update.
High powered 4 Volt Preamp Outputs ensures ultra clean signal transmission from the Dynavin to aftermarket amplifiers. When properly gain matched these high voltage RCAs virtually eliminate noise and distortion, even at high volume levels.
DSP Sound Integration
The Dynavin Pro offers extensive sound setting options to get the most out of your vehicle sound system and to adapt the sound to your taste and preferences. The built-in parametric 9-band EQ allows separate settings for the front and rear channels with professional-level attention to detail.
Source Level Setting
In the source menu you can adjust the different volume levels for the various audio sources to your preference.
Fader and Balance
Simply drag the crosshairs on the touchscreen to the desired position on the illustration of the vehicle interior to set the fader balance and time correction.
Memory Presets: Preset Stations (FM:15 / MW: 15)
Memory: Auto Memory
- Display: 9 inch (LVDS)
- Resolution 1024 x 600 pixels (RGB)
- Capacitive touch screen
- Anti-reflective display
- Working system: TFT active matrix
- Active area: 196.608 (H) x 114.15 (V) mm
- Synchronization of Bluetooth music with smartphones
- Display of song titles / lyrics / composer / singer
- Steering wheel can control song / volume up / down
- Song titles / texts can be displayed on the dashboard
- Supports wired Apple CarPlay
- Supports wired Android Auto
- Can be controlled via the steering wheel (Siri activation / telephone acceptance & hang up)
- Firmware upgradeable
- GPS antenna included
- GPS reception frequency 1,575.42 ± 1 MHz
- GPS reception sensitivity -165 dB max
- Positioning accuracy: 10 m, 2D RMS
- Data update rate: 1 HZ
- Recapture time: 0.1 s on average
- FM frequency range: 87.5-108.0 MHz
- AM frequency range: 530 - 1710 KHZ
- FM utility sensitivity: -2 db
- FM stop sensitivity: 22 db
- AM stop sensitivity: 21 db
- With left and right stereo channels
- Signal-to-noise ratio: 56 db
- Automatic station storage APS stores 5 stations with the best signal on page 3
- Manual station storage for 15 stations
- RDS functions: AF, TA, station text
- Automatic station search function
- High cut high frequency attenuation function
- Support for alternating FM / AM memory space images
- Optional switching on and off of the radio antenna
- Maximum output power: 4 x 45 W.
- Adjustable subwoofer level
- Subwoofer, bass, middle, treble phase selectable
- Equalizer: pop, rock, classic
- 9-band parametric equalizer
- Fader and balance
- Digital time correction
- USB specification: USB 2.0
- Audio playback (supported formats: APE / FLAC / M4A / MP3 / WMA / WAV)
- Video playback (supported formats: MPEG-4 / AVI / FLV / MPEG / MPG / DAT / VOB / MKV)
- Image search (supported formats: JPG / BMP / PNG / JPEG)
- Playback mode: random play / single track loop / all loops / folder loop
- Image can be set as the start screen
- Sync song album pictures
- Movable progress bar
- Video playback speed x2 / x4
- Memory playback progress
- Support for dashboard display of songs / composers
- Assist steering wheel to control song / volume level up / down
- Search by file / folder name
- Supports up to 256 GB USB storage device
- Maps: North Amerca
- Menu languages: 28 languages
- TMC traffic information
- Advanced address search
- Postcode search
- Free Search
- Search with parts of words
- Extended POI functions
- Smart routes: using historical traffic data
- Fast route calculation
- Extended route planning
- Extended TMC mode
- Map display: 2D top view, 2D north alignment, 3D
- 3D city maps: 3D building views
- Display of elevation profiles
- 3D motorway junctions: 3D display of motorway junctions
- Tunnel mode
- Highway mode
- Navi mix mode
- Direct selection by phone from POI data
- Online map update via www.naviextras.com
- Free map update after the first registration on naviextras.com
- Output power: 4 x 45 W high-performance amplifier
- Advanced power IC
- Display: 9 ”capacitive high resolution display
- 3 pre-outs (3 V, front / rear / subwoofer)
- AUX-In: 1 x A / V AUX input / 1 x video output
- CANBUS system integration
- Menu language: English / German / French / Spanish / Portuguese / Dutch / Greek
- Camera connection & built-in controls for Dynavision multi-view cameras / compatible with original cameras
- Camera guidelines setting
- Rear view camera display automatic / quick start
- 9 band EQ
- Automatic dimmer
- Firmware upgradeable
- Engine start-stop unaffected
- Programmable Key -> (Hotkey)
- File management: copy / paste / delete / display
